BRXF series Magnetic Suspension Mixer

Technical Parameters
BRJC series magnetic stirrers are available in various types and sizes, for solid-liquid and liquid-liquid mixing, heat transfer and chemical reaction. When in low speed, it is suitable for shear force sensitive products. BRJC series magnetic stirrers are designed for liquid mixing vessels, especially in pharmaceutical and biological liquid products.

Type	Volume	Motor Power	Rotating Speed
BRCJ-50	5-50L	0.18KW	50-450rpm
BRCJ-100	50-120L	0.25KW	50-450rpm
BRCJ-500	100-500L	0.55KW	50-450rpm
BRCJ-1000	500-1000L	0.75KW	50-450rpm
BRCJ-2000	1000-2000L	1.1KW	50-450rpm
BRCJ-5000	2000-5000L	2.2KW	50-450rpm
BRCJ-10000	5000-10000L	3KW	50-450rpm
BRCJ-20000	10000-20000L	4KW	50-450rpm

Main material

S31603 (316L)

Hastelloy C-22

Hastelloy C-276

Super Stainless Steel AL6XN

Duplex steel 2205

Duplex steel 254MO

904L

Customized materials are also available.

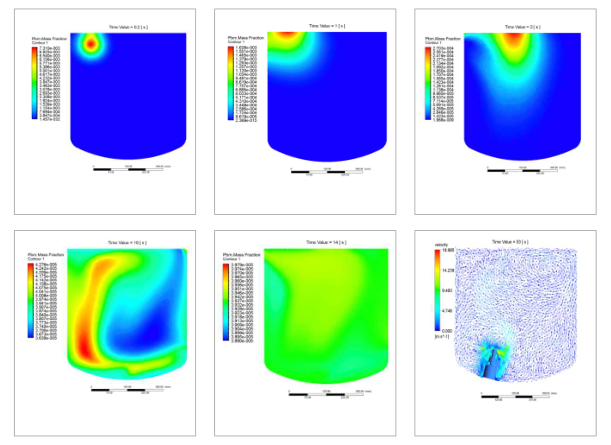

Simulation CFD simulation to optimize mixing effect

Monitoring point	Rotating speed	Mixing duration
P1	150rpm	43s
P1	300rpm	25s
P1	450rpm	15s

Main advantages

Non contacted part is 304

Motor brand: Germany Nord, SEW

Bearing material: silicon carbide, tungsten carbide

Suitable viscosity up to 700cP

The maximum linear velocity of the blade is 2-6m/s

Surface roughness: ≤ 0.4μm

Main advantages

Bottom mounted

Lower level mixing

Easy to disassemble and maintain

Zero gravity suspension design to effectively reduce friction

Fully isolated seal

No drive shaft, no contact transmission torque

No leakage risk

No pollution risk

Easy to clean online, CIP/SIP; easy to operate

Main material

S31603 (316L)

Hastelloy C-22

Hastelloy C-276

Super Stainless Steel AL6XN

Duplex steel 2205

Duplex steel 254MO

904L

Customized materials are also available.
