BCJ Series Industrial Magnetic Stirrer for Bioreactors

BCJ series Magnetic stirrer for bioreactor

BCJ series bioreactor magnetic stirrers are available in various types and sizes, for shear force sensitive biological products which have high requirement in friction cast.

Product Description

Main material

S31603 (316L)

Hastelloy C-22

Hastelloy C-276

Super Stainless Steel AL6XN

Duplex steel 2205

Duplex steel 254MO

904L

Customized materials are also available.

*Non contacted part is 304

*Motor brand: Germany Nord, SEW

*Bearing material: silicon carbide, tungsten carbide

*Suitable viscosity up to 700cp

*The maximum linear velocity of the blade is 2-6m/s

*Surface roughness: ≤ 0.4μm

Main advantages

Suitable for suspension culture, flaky carrier culture, microcarrier culture

Installed at the bottom

Lower level mixing

Easy to disassemble and maintain

Magnetic drive

Fully isolated seal

No drive shaft, no contact transmission torque

No leakage risk

No pollution risk

Easy online cleaning, online CIP/SIP; easy to operate

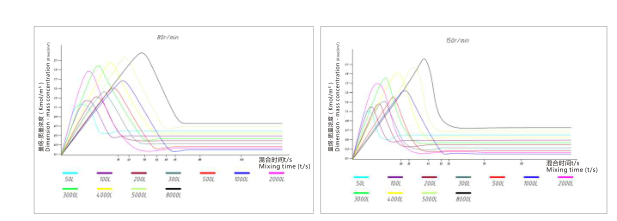

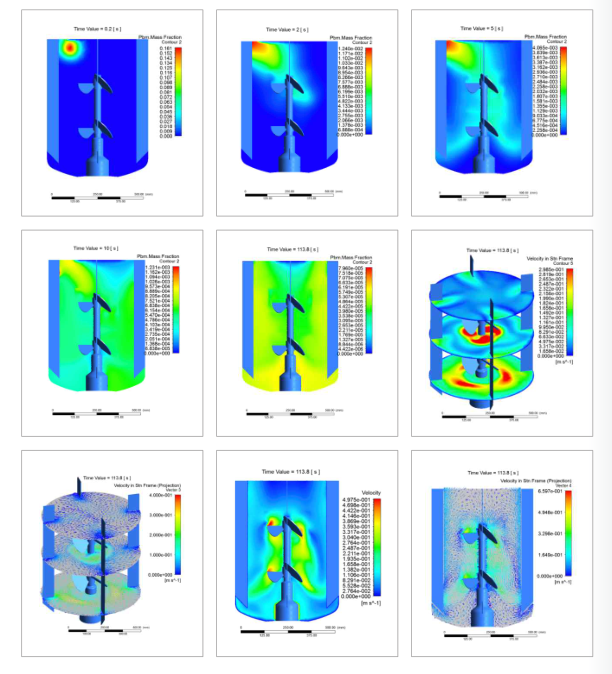

Simulation CFD simulation to optimize mixing effect
BCJ series Magnetic stirrer for bioreactor

BCJ series Magnetic stirrer for bioreactor

Technical Parameters

BCJ series bioreactor magnetic stirrers are available in various types and sizes, for shear force sensitive biological products which have high requirement in friction cast. BCJ series magnetic stirrers are widely applied in suspension culture, FibraCel culture and microcarrier culture.
BCJ series Magnetic stirrer for bioreactor

Type	Volume	Motor power	Rotating speed
BCJ-50	50L	0.37KW	50-200rpm
BCJ-100	100L	0.37KW	50-200rpm
BCJ-200	200L	0.55KW	50-200rpm
BCJ-300	300L	1.1KW	50-200rpm
BCJ-500	500L	1.1KW	50-200rpm
BCJ-800	800L	2.2KW	50-200rpm
BCJ-1000	1000L	2.2KW	50-200rpm
BCJ-2000	2000L	3KW	50-200rpm
BCJ-3000	3000L	3KW	50-200rpm
BCJ-4000	4000L	3KW	50-200rpm
BCJ-5000	5000L	3KW	50-200rpm
BCJ-8000	8000L	4KW	50-200rpm
