Main material
S31603 (316L)
Hastelloy C-22
Hastelloy C-276
Super Stainless Steel AL6XN
Duplex steel 2205
Duplex steel 254MO
904L
Customized materials are also available.
*Non contacted part is 304
*Motor brand: Germany Nord, SEW
*Bearing material: silicon carbide, ceramic
*Bearing material: NSK, SKF
*Suitable viscosity up to 700cp
*The maximum linear velocity of the blade is 2-6m/s
*Surface roughness: ≤ 0.4μm
Main advantages
Top mounted
Better level mixing
Easy to disassemble and maintain
Magnetic drive
Fully isolated seal
No drive shaft, no contact transmission torque
No leakage risk
No pollution risk
Easy to clean online, CIP/SIP; easy to operate

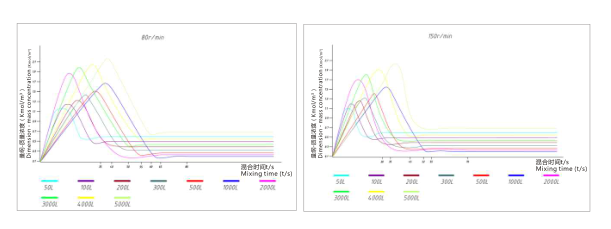

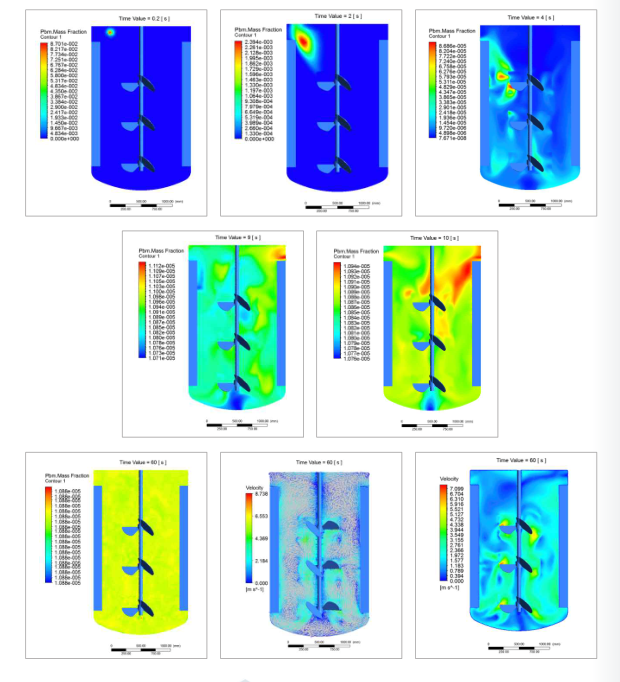

Simulation CFD simulation to optimize mixing effect
Technical Parameters
BRSC series top magnetic stirrers are available in various types and sizes, for solid-liquid and liquid-liquid mixing, heat transfer and chemical reaction. When in low speed, it is suitable for shear force sensitive products which have high requirement in friction cast. BRSC series magnetic stirrers are designed for liquid mixing vessels, especially in pharmaceutical and biological liquid products.
| Type |
Volume |
Motor power |
Rotating speed |
| BRSC-50 |
50L |
0.4KW |
50-200rpm |
| BRSC-100 |
100L |
0.4KW |
50-200rpm |
| BRSC-200 |
200L |
0.75KW |
50-200rpm |
| BRSC-300 |
300L |
0.75KW |
50-200rpm |
| BRSC-500 |
500L |
1.1KW |
50-200rpm |
| BRSC-1000 |
1000L |
1.5KW |
50-200rpm |
| BRSC-2000 |
2000L |
3KW |
50-200rpm |
| BRSC-3000 |
3000L |
4KW |
50-200rpm |
| BRSC-4000 |
4000L |
5.5KW |
50-200rpm |
| BRSC-5000 |
5000L |
7.5KW |
50-200rpm |
