BRXF series magnetic suspension stirrers are available in various types and sizes, for solid-liquid and liquid-liquid mixing, heat transfer and chemical reaction. When in low speed, it is suitable for shear force sensitive products which have high requirement in friction cast.
| Type | Volume | Motor power | Rotating speed |
|---|---|---|---|
| BRXF-50 | 5-50L | 0.18KW | 50-450rpm |
| BRXF-100 | 50-120L | 0.25KW | 50-450rpm |
| BRXF-500 | 100-500L | 0.55KW | 50-450rpm |
| BRXF-1000 | 500-1000L | 0.75KW | 50-450rpm |
| BRXF-2000 | 1000-2000L | 1.1KW | 50-450rpm |
| BRXF-5000 | 2000-5000L | 2.2KW | 50-450rpm |
| BRXF-10000 | 5000-10000L | 3KW | 50-450rpm |
| BRXF-20000 | 10000-20000L | 4KW | 50-450rpm |

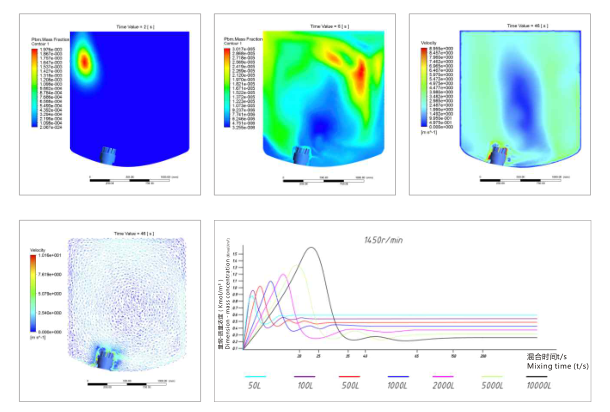

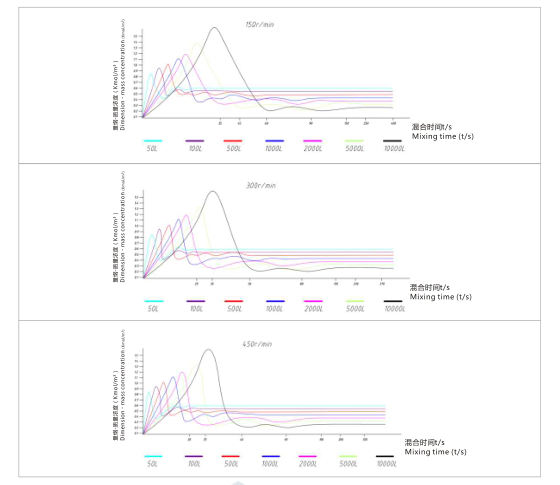

Simulation CFD simulation to optimize mixing effect
| Type | Volume | Motor power | Rotating speed |
|---|---|---|---|
| RTGJ-50 | 5-50L | 1.1KW | 1450rpm |
| RTGJ-100 | 50-120L | 1.1KW | 1450rpm |
| RTGJ-500 | 100-500L | 3KW | 1450rpm |
| RTGJ-1000 | 500-1000L | 5.5KW | 1450rpm |
| RTGJ-2000 | 1000-2000L | 7.5KW | 1450rpm |
| RTGJ-5000 | 2000-5000L | 9.2KW | 1450rpm |
| RTGJ-10000 | 5000-10000L | 11KW | 1450rpm |
| RTGJ-20000 | 10000-20000L | 15KW | 1450rpm |
