COMPANY PROFILE
Kunshan Bairui Intelligent Science and Technology Co., Ltd. is a supplier specialized in the development and manufacture of magnetic agitators for the pharmaceutical industry. We are devoted to providing the best industrial agitation process, technology, and complete manufacturing solutions to meet all kinds of process requirements. Kunshan Bairui Intelligent Science and Technology Co., Ltd. is a leading supplier for sanitary vessel accessories in China.
Main material
Low shear magnetic stirrer
Magnetic suspension mixer
High shear magnetic mixer
Magnetic stirrer for bioreactor
Top magnetic stirrer
Multifunctional chassis
Hastelloy C-22 special product series
Main materialS31603 (316L)
Hastelloy C-22
Hastelloy C-276
Super Stainless Steel AL6XN
Duplex Steel 2205
Duplex Steel 254MO
904L
Customized materials are also available.
Non-contacted part is 304
Motor brand: Germany Nord, SEW
Bearing material: silicon carbide, tungsten carbide
Suitable viscosity up to 700cp
The maximum linear velocity of the blade is 2-6m/s
Surface roughness: < 0.4μm

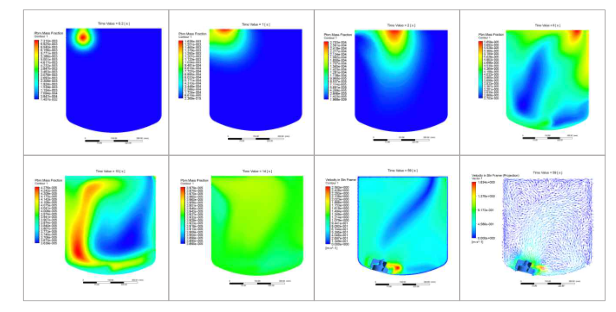

Simulation

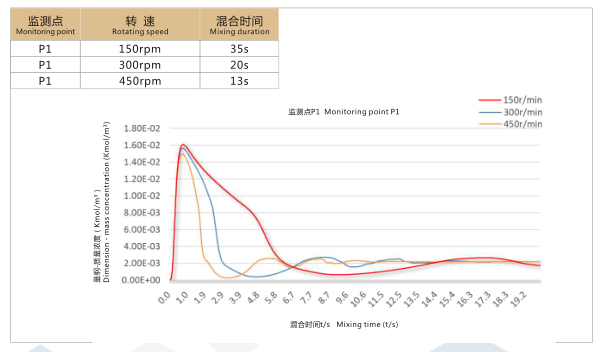

Rotating speed
150rpm: 35s
300rpm: 20s
450rpm: 13s
Main advantages
Bottom mounted
Lower level mixing
Easy to disassemble and maintain
Magnetic drive
Fully isolated seal
No drive shaft, no contact transmission torque
No leakage risk
No pollution risk
Easy to clean online, CIP/SIP; easy to operate
